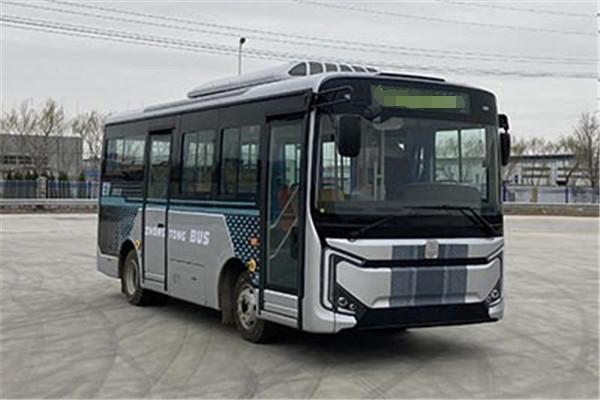

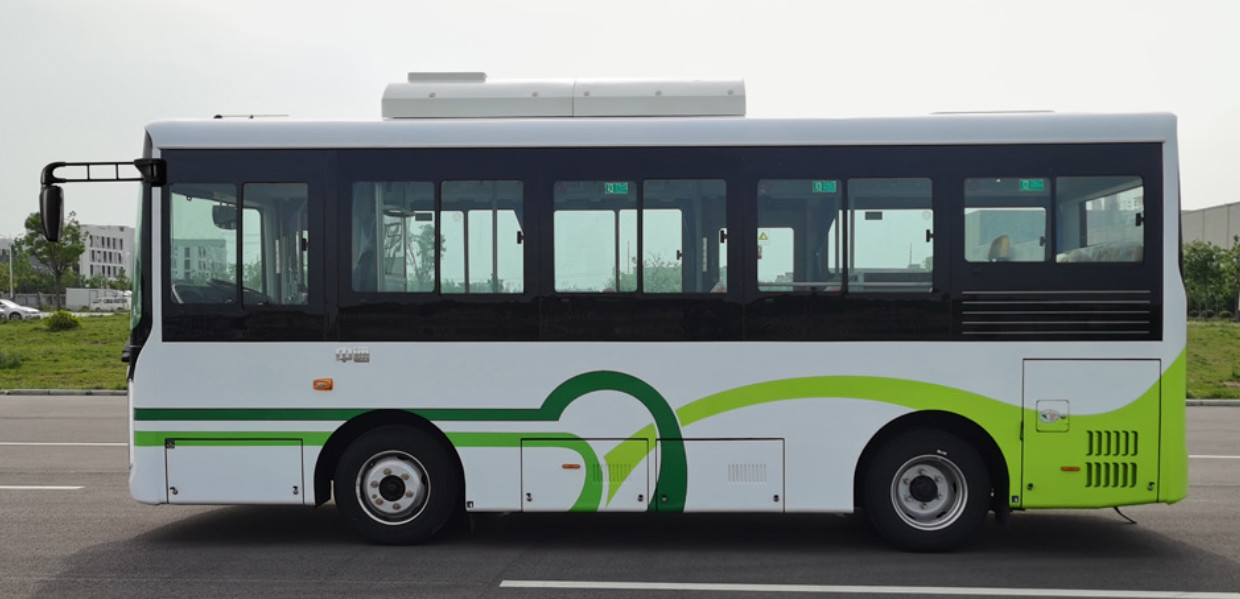

pure electric bus (22 seats)
A small electric public transportation bus, also known as a small
electric bus, is a public transport vehicle that operates solely on
electric power, offering a more environmentally friendly and
energy-efficient alternative to traditional fuel-powered buses.
These vehicles are typically smaller in size and are suitable for
short-distance urban transportation and narrow streets.
The design of a small electric bus is similar to that of a
conventional bus, but it employs an electric powertrain instead of
a traditional internal combustion engine. These buses are equipped
with an electric motor and a high-capacity battery pack, which is
usually a lithium-ion battery or other advanced battery technology.
The batteries can be charged by plugging into charging
infrastructure, with charging times typically ranging from a few
hours to several hours, depending on the battery capacity and
charging equipment power. Once fully charged, small electric buses
can provide long driving ranges for urban short-distance
transportation.
One of the advantages of small electric buses is zero tailpipe
emissions, as they produce no exhaust pollutants, making them
highly beneficial for improving urban air quality and reducing air
pollution. Additionally, their operation is quieter, reducing noise
pollution and providing a more comfortable riding experience for
passengers.
These vehicles typically have smaller dimensions to accommodate
narrow streets and crowded urban environments. They usually offer a
moderate seating capacity to meet passenger demand while
maintaining compactness and maneuverability.
To support the operation of small electric buses, charging
infrastructure is essential. Charging stations are typically
located at bus depots or in proximity to bus stops. These charging
facilities can provide different charging speeds, including slow
charging and fast charging, to meet the charging needs of the
vehicles.
In summary, a small electric public transportation bus is an
environmentally friendly, energy-efficient, and urban-adapted
option for public transit. They reduce air and noise pollution,
providing passengers with a more comfortable and sustainable travel
experience. As electric technology continues to advance, small
electric buses are expected to play an increasingly important role
in urban transportation.
Vehicle parameter configuration:
Purpose Bus
Body length 6700mm
Body width 2300,2340mm
Body height 2800, 2860, 3000mm
Vehicle mass 5260kg
Total mass 9500kg
Number of seats 45/13-18,39/13-22,35/13-22
Maximum speed 69km/h
Motor parameters:
Motor TZ370XS-ZT1300
Motor power 100/136kW
Motor Brand Zhongtong Bus Co., Ltd.
Front suspension and rear suspension 1780/1620mm
Number of spring leaves 3/4,4/4
Number of axes 2
Wheelbase 3300mm
Axle load 3500/6000kg
Front wheelbase 1830,1870mm
Rear wheelbase 1600,1670,1690,1724mm
Approach departure angle 10/13°
Number of tires: 6
Specifications: 215/75R17.5
Speed limiter speed limit (km/h): 100;
A driving recorder with satellite positioning function is
installed;
Type of energy storage device: lithium iron phosphate battery.
The middle door is a folding door.
cloth seat
