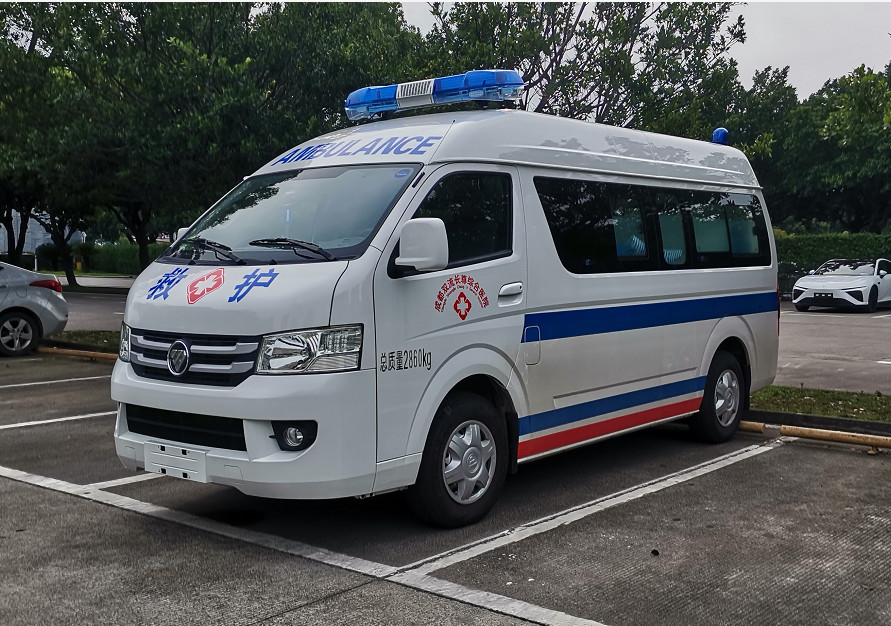

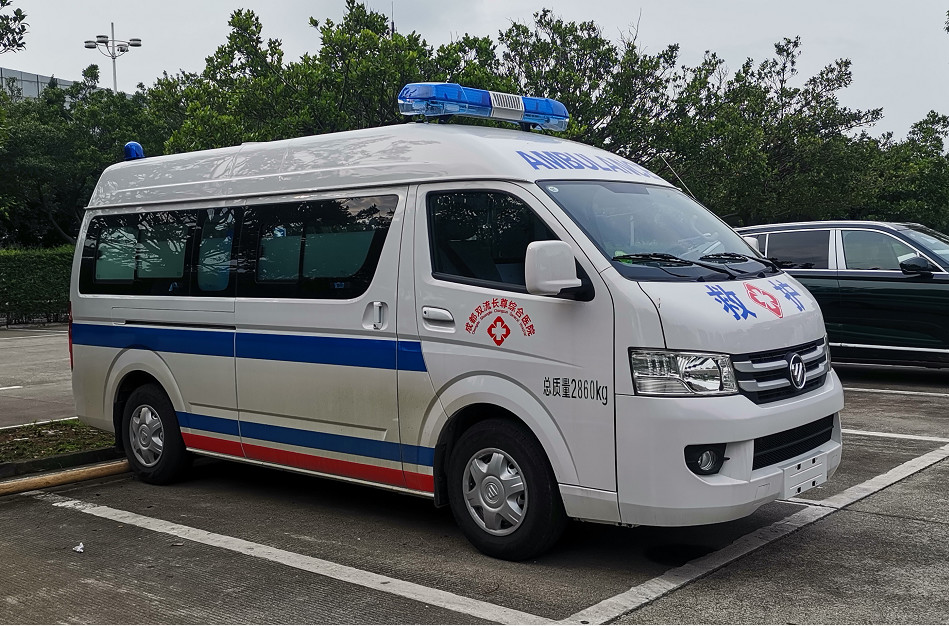

Futian medical ambulance gasoline 7-seat rear drive 4×2
Serial number vehicle technical parameters:
1 Body size mm mm: 5320×1695×2400 (length× width× height)
2 wheelbase mm: 3050
3. The total weight of the vehicle with full load is kg: 2860
4 Vehicle curb weight kg: 2080
5 fuel type: gasoline
6 Engine model: 4K22D4M
7 Suspension form (front/rear): double wishbone torsion bar spring
independent suspension/leaf spring dependent suspension.
8 displacement ml: 2378
9 rated power kw: 118
10 maximum net power kw: 110
11 Track (front/rear) mm mm: 1470/1465
12 Front suspension/rear suspension MM mm: 1190/1080
13 Emission standard: GB18352.6-2016 National VI
14 Minimum turning diameter (m): 12.5
15 Transmission: Manual gear.
16 top speed km/h: 150
17 tyre size model 195/70r15lt, 195r15c
18 Brake system front disc rear drum
19 Rated Passengers (including Drivers) 6-8
Main configuration of vehicles
20 All-metal closed load-bearing body
21 ABS+EBD
Original system of 22 cab medical cabin
23 Same color bumper
24 spare tools
25 High position brake light
Configuration inside and outside the medical cabin:
1 white body+red powerful reflective tape
2. Glass film is pasted on the window of medical cabin 2/3.
Alarm and lighting system
3 100 w alarm
4 LED blue long row flashing warning lights at the front of the
roof
5. The blue flashing warning light of the LED of the roof tailgate.
6 LED snail light above roof tailgate
7 LED blue warning lights on the left and right sides of the roof
8 LED square lighting in medical cabin
Central power distribution system
9 a new type of ambulance vehicle power supply device 1000W sine
wave inverter is installed and used. It can be used for precision
medical equipment and can form uninterrupted power supply.
10 AC/DC (220V, 12V) power socket set
Medical cabin configuration
11 ultraviolet sterilization lamp, which has the function of timing
delay opening.
Independent heating and cooling air system for the medical cabin,
with independent control of heating and cooling, and reasonable
control of the temperature in the medical cabin as required.
13 Two-way ventilation system in medical cabin (air inlet and
outlet)
14 infusion hook at the top of medical cabin
15 Installation of partition wall between cab and medical cabin:
with sliding window.
Combined medicine cabinet on the left side of the medical cabin:
the cabinet door has a sliding door and an oxygen tank, and the
first-aid equipment can be fixed on the table.
17 nurse seat with adjustable back for single person and long row
seat for two people on the right side of medical cabin: with
comfortable back, soft cushion and seat belt.
18 Single-seat cabinet after partition: with comfortable back, soft
cushion and seat belt; Medicine cabinet;
19. All cabinet doors of the medical cabin are equipped with drawer
locks: with self-locking function.
20 10-liter oxygen cylinder
21 oxygen quick interface, in line with national standards.
22 medical floor or aluminum alloy floor of medical cabin
23 1KG fire extinguisher
24 stainless steel dirt bucket
Special instruments and equipment
25 automatic boarding stretcher
26 stretcher platform
