    9 Speed Medical Emergency Ambulance Ford Transit Mid Axle

    Ask Lasest Price
    Brand Name : Transit
    Model Number : Ford Transit mid-axle diesel medical ambulance front-wheel drive 4×2 manual/9-speed automatic
    Price : $35,000-$40,000Dollar
    Payment Terms : T/T
    Supply Ability : 1000 vehicle
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    9 Speed Medical Emergency Ambulance Ford Transit Mid Axle

    Ford Transit mid-axle diesel medical ambulance front-wheel drive 4×2 manual/9-speed automatic


    An ambulance is a specialized medical vehicle used for emergency medical rescue and transportation of patients. It is typically equipped with a range of medical equipment and supplies to provide emergency care and treatment.

    The appearance of an ambulance is usually bright and vibrant in color, such as red, white, or yellow, to make it more easily noticeable during emergencies. They typically have lights and sirens, such as flashing lights and sirens, to alert other vehicles and pedestrians.

    The interior of an ambulance is usually divided into different areas to accommodate medical equipment and healthcare personnel. One area is the driver's compartment, used for driving the ambulance. Another area is the patient compartment, which typically has one or more beds for the emergency care and rehabilitation of patients. These beds may be equipped with safety belts and restraints to ensure the patient's safety during transportation.

    Ambulances are typically equipped with various medical equipment and supplies, such as electrocardiogram (ECG) machines, ventilators, defibrillators, emergency medications, infusion devices, and more. These devices and supplies are available for healthcare personnel to provide basic emergency care and treatment during transportation.

    Ambulances are staffed by professional healthcare personnel, such as emergency doctors, nurses, and paramedics. They provide emergency medical services on the ambulance, including first aid, patient assessment, basic life support, pain relief, and more. They also maintain communication with hospitals and other medical facilities to ensure that patients receive further treatment upon arrival at the hospital.

    In summary, an ambulance is a specialized vehicle designed for emergency medical rescue and transportation of patients. They are equipped with necessary medical equipment and supplies and staffed by professional healthcare personnel to provide emergency care and rescue, ensuring that patients receive optimal medical support during transportation.

    Vehicle technical parameters
    1Body size mm:5341×1986×2450 (length×width×height)
    2Medical cabin interior dimensions mm:2900×1700×1720 (length×width×height)
    3Wheelbase mm:3300
    4Vehicle fully loaded total mass kg:3510
    5Vehicle curb weight kg:2540
    6suspension systemFront suspension MacPherson independent suspension,
    7Minimum ground clearance mm:Rear suspension leaf spring non-independent suspension
    8Minimum turning radius m:141
    9Fuel type:6.45
    10Fuel tank volume (L):diesel fuel
    11engine model80
    12Way of working:DURATORQ4D20C6H
    13Exhaust volume ml:In-line, four-cylinder, supercharged and intercooled, high-pressure common rail
    14Rated power kw(hp)/rpm:1998
    15Maximum torque Nm/rpm:105/3250
    16Emission Standards:305/1500-2500
    17Drive modeCountry VI
    18transmission:Front wheel drive
    19Top speed km/h:5 speed manual transmission
    20Tire specifications and models156
    21Braking System215/75R16LT
    22Rated passenger capacity (including driver)front disk rear disk
    Main vehicle configuration
    23All-metal enclosed load-bearing body
    24ABS8.0+EBD
    25central locking
    26Front electric doors and windows
    27Driver's seat (main) airbag
    28remote key
    29Original cab heating and cooling system
    30Spare tire
    31high mount brake light
    32Backup tools
    33Tire pressure display
    34cruise control
    35Reversing radar + visual reversing image
    36Large central control screen + Bluetooth connection

    二,Internal and external configuration of the medical cabin

    serial numberdescribequantity
    body painting
    1White body + red strong reflective tape and first aid logo1 set
    2Glass film on the windows of the medical cabin 2/31 set
    Alarm and lighting systems
    3siren1 set
    4Police call names: clear the way, ambulance, manual, whistle, bass.1 set
    5There is a police light platform on the front of the roof, and an embedded LED blue police light is installed on the front of the platform.2 cups
    6LED blue square police light at the rear of the roof.6 lamps
    7LED blue police lights on the left and right sides of the roof1 set
    8The police lamp shade is made of highly translucent material, which has high transparency and does not fade. The police light source adopts imported high-brightness LED light-emitting tubes with a service life of up to 50 million times. The rated operating voltage is DC12V, DC24V, and the operating temperature is -40℃~+75℃.1 cup
    9An outdoor LED lighting is installed above the middle door. In order to facilitate the use of the lighting, it is connected to the gate control circuit of the middle door. The lighting can only be turned on when the middle door is opened.1 cup
    10An outdoor lighting is installed near the back door of the wall cabinet. In order to facilitate the use of the lighting, it is connected to the back door door control circuit. The lighting can only be turned on when the back door is opened.2 cups
    11Infusion lighting spotlights are installed on the top of the medical cabin. The illumination angle can be adjusted to enhance the brightness of local locations during first aid. 2 lights2 sets

    central power distribution system

    (Consists of main battery, auxiliary battery, intelligent charging control device, sine wave inverter with charging function, electric control box, wiring harness, and control panel.)

    12Car emergency start control device: When the main battery cannot start normally when it is lower than 12V, pressing and holding the emergency start switch can quickly start the car with the help of the auxiliary battery.1 set
    13Intelligent charging control device: 1. Ensure the normal charging of the main battery; 2. Automatically disconnect to avoid generator overload and extend the life of the generator; 3. The auxiliary battery works independently to avoid stealing the power of the main battery.1 set
    14Maintenance-free battery (12V/70A)1
    15Installing a utility model ambulance vehicle-mounted power supply device can realize 24-hour uninterrupted power supply when the vehicle is started, and can output 220V, 1000W pure sine wave power supply for medical equipment.1 set
    15AC/DC (220V) power socket set3 groups
    17DC (12V) power socket with USB interfaceGroup 1
    18External power supply (220V/16A waterproof, with protective cover), equipped with 15m mobile cable1 set
    19The cab and medical cabin are each equipped with a set of control panels, and the panels adopt a dual-circuit touch button design. The panel operates and displays:1 set
    20Lighting, 220V AC, ventilation system, front and rear intercom system, sterilizing lamp, surgical lamp, internal spotlight, air conditioner, heating.1 set
    21The LCD screen can display: time, indoor temperature, indoor humidity, main and auxiliary battery 12V voltage, AC 220V voltage, etc. The cab control panel can operate the intercom, internal spotlights, and lighting.1 set

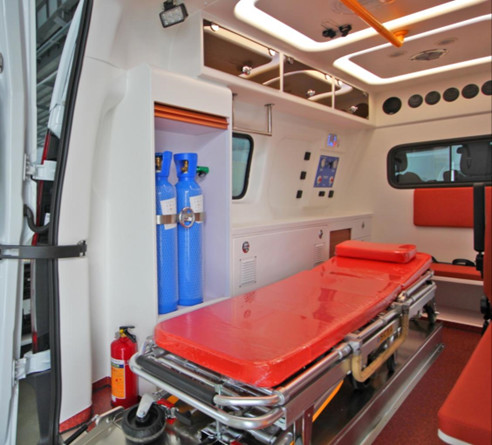

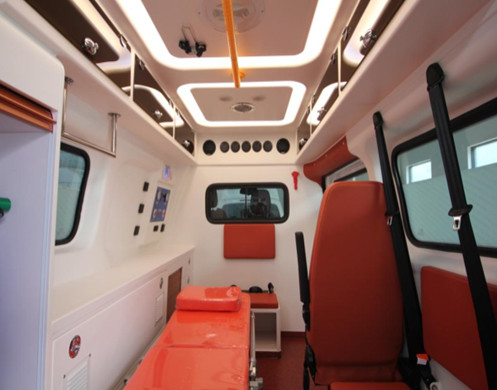

    Medical cabin configuration
    22Ultraviolet sterilization lamp (After the sterilization lamp power is turned on, the sterilization lamp will work after a delay of 1 minute and automatically turn off after 30 minutes.)1 cup
    23Medical cabin independent heating and cooling system1 set
    24Medical cabin two-way ventilation system (inlet and outlet air)1 set
    25Front and rear intercom system1 set
    26Reinforcement and anti-collision treatment of the inner wall of the medical cabin1 set
    27Side door head protection1 set
    28Yellow nylon antibacterial handrails are installed on the top of the medical cabin1 item
    29Handrails for the middle door and rear door of the medical cabin2 pieces
    30Infusion rack on top of medical cabin1
    31Medical cabin thermal insulation layer1 set
    32Separation wall installed between cab and medical cabin: with sliding window1 set
    33The overall style of the medical cabin is modeled after that of an aviation cabin, and all functional cabinets and operating consoles are designed with rounded corners to protect the safety of the passengers. All interiors are made of ABS sheets that are one-time blister molded, with features such as high surface hardness, smoothness, antibacterial, easy to clean, sterilizable, anti-UV, and anti-oxidation.1 set
    34A single seat is installed in the front of the medical cabin with a comfortable backrest. There is a storage compartment under the seat where a first aid kit can be placed.1 set
    35A combination cabinet is installed on the left side of the medical cabin. The combination cabinet consists of 4 drawers, 1 storage compartment with a rolling shutter door, 1 storage compartment with an outward flip door, and 1 sealed (door panel is removable) storage compartment. The surface of the entire set of combination cabinets is made of ABS sheets that are one-time blister molded. It has the characteristics of high surface hardness, smoothness, antibacterial, easy to clean, sterilizable, anti-UV, and anti-oxidation.1 set
    36A set of wall cabinets are installed on the left side above the medical cabin for placing first aid supplies. The wall cabinet adopts an integrated injection molding production process, which is independent and seamless, with high product density and strong overall impact resistance. It has the characteristics of high surface hardness, smoothness, antibacterial, easy to clean, sterilizable, anti-UV, and anti-oxidation.1 set
    37An oxygen cabinet with an anodized aluminum alloy rolling shutter door is installed on the left rear side of the medical cabin. The surface of the oxygen cabinet is made of ABS sheets and is made of one-time blister molding. It has high surface hardness, smoothness, antibacterial, easy to clean, sterilizable, anti-UV, and anti-oxidation. Features. The anodized aluminum alloy rolling shutter door is made of environmentally friendly materials and has the characteristics of overall beauty, light weight, impact resistance, anti-oxidation, acid and alkali resistance, easy cleaning, and convenient operation.1 set
    38There is a bracket for optional first aid equipment on the left side of the medical cabin. (Can install ventilators, monitors, infusion pumps and other first aid equipment)1 set
    39A forward-facing seat is installed on the right side of the medical cabin. The seat is foldable and the seat back is adjustable.1 piece
    402-person bench seat on the right side of the medical cabin: with comfortable back, soft seat cushion and 2 sets of seat belts1 piece
    41Drawer locks installed on all cabinet doors in the medical cabin: with self-locking function1 set
    4210 liter oxygen bottle2
    43Ambulance multifunctional oxygen bus: It uses high-pressure resistant 316 stainless steel metal pipes to connect to the control panel. The control panel is located in the left front of the medical cabin, close to the doctor. It is equipped with: oxygen inhalation terminal (1) connected to the humidifier ( 1), the ventilator terminal (1) is connected to the ventilator dedicated connector (1).1 set
    44Two oxygen pressure gauges and one switch: It is convenient to check the status of the two pressure gauges. Use the switch to switch between two oxygen bottles (groups).1 set
    45Two pressure reducing valves: one for oxygen inhalation and one for ventilator.1
    Special equipment
    46Automatic stretcher1 piece
    47stretcher platform1 piece
    48Scoop stretcher (aluminum alloy)1 piece
    49Special chair for stairs (special fixed frame placed at the tailgate)1 piece
