| Outside dimensions | 8220×2550×3380mm |
| Maximum total mass | 17450kg |
| Liquid carrying capacity | Water tanker truck carries 8200kg of water |
| maximum speed | 90km/h |
| Fire pump rated flow | 40L/s 1.0MPa |
| Rated flow rate of fire monitor | Water tanker: 40L/s 1.0MPa |
| fire cannon range | Water tanker: ≥65m |
| Specific power | 169/17.45=9.68 |
| Approach / departure angle | 19°/11° |
| model | EQ1185DJ9CDF |
| manufacturer | Dongfeng Motor Co., Ltd. |
| Engine rated power | 169kW |
| engine capacity | 6200ml |
| Engine emission standards | GB3847-2005, GB17691-2018 Country VI |
| Drive form | 4×2 |
| Wheelbase | 4700mm |
| Maximum allowed total weight | 18000kg |
| structure | Flat head, four doors, original double row |
| Number of drivers and passengers | 3+3 people |
| equipment | - The original vehicle instrument panel is equipped with a fire
control instrument panel and a warning light control box.
|
| General layout | 1. Alarm; |
| structure | 2. Power take-off control switch and indicator light; |
| Equipment box | 3. Additional power switch; |

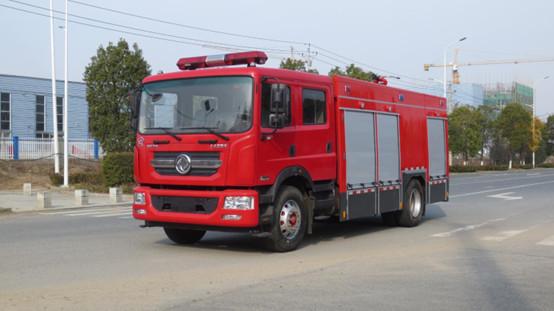

| pump room | The vehicle is composed of two major parts: the firefighter's crew
compartment and the body. The body layout adopts a three-piece
structure, with the equipment box at the front, the tank in the
middle, and the water pump room at the rear. The tank is a T-shaped
tank. |
| Ladders and handles | The main frame structure is welded with high-quality square tubes,
and the exterior decorative panels are welded with carbon steel
plates. The anti-skid pattern plate on the roof is walkable, with
flip pedals on both sides and anti-skid design (aluminum alloy
square tubes are welded according to user needs). |
| capacity | The equipment box is located at the rear of the passenger
compartment. There are aluminum alloy rolling shutter doors on both
sides with lights inside. Storage boxes are provided in the
equipment box according to needs. There is a tool box and rolling
shutter door on the lower side skirt, which can store small tools. |
| Material | The pump room is located at the rear of the vehicle. There are
aluminum alloy rolling shutter doors on both sides and behind.
There are lights inside. Some commonly used equipment can be placed
on both sides of the pump room. |
| tank fixed | The rear ladder adopts an aluminum alloy two-section flip ladder,
which is no more than 450mm above the ground when in use. The
handle of the vehicle is made of a grooved anti-slip round steel
pipe with a plastic spray treatment on the surface. |
| Tank settings | 8200kg (SG80) |
| High quality carbon steel (thickness bottom plate 4mm, side plates
3mm, top plate 3mm) |
| Flexible connection with subframe |
| Manhole: 1 DN460 manhole cover with quick lock/open automatic
pressure relief device |
| Overflow port: 1 DN65 overflow port is provided |
| model | CB10/40-RS type normal pressure vehicle fire pump |
| form | Normal pressure centrifugal |
| Limited Data | 40L/s@1.0MPa |
| Outlet rated pressure | 1.0MPa |
| maximum suction depth | 7m |
| water diversion device | Double piston vacuum pump |
| Water diversion time | Maximum suction depth ≤50s |
| Pipe material | High quality seamless carbon steel pipe |
| Suction pipeline | There is one DN125 water suction port on each side of the pump
room. |
| Water injection pipeline | There is a DN65 water injection port on the left and right sides of
the water tank, and a DN65 water pump is installed in the pump room
to inject water into the tank. |
| Outlet pipe | There is one DN80 water outlet with stop valve on the left and
right sides of the pump room. |
| Cooling water pipeline | Cooling water pipeline and control valve equipped with cooling
power take-off |
| Water cannons | PS8/40W |
| manufacturer | Chengdu West Fire Machinery Co., Ltd. |
| Rotation angle | 360° horizontal rotation |
| Maximum elevation/depression angle | Depression angle ≤ -15°, elevation angle ≥ +45° |
| flow | 40L/S |
| range | Water≥65m |
| Additional electrical | Set up independent circuit |
| Auxiliary lighting | The fireman's room, water pump room and equipment box are equipped
with lights respectively, and the control panel is equipped with
lighting, indicator lights, etc. |
| strobe light | Red and blue strobe lights are installed on both sides of the car
body |
| warning device | Long row of red warning lights, installed on the top of the cab |
| Siren, with control box under the driver's front |
| Fire scene lighting | Install a 35W fire searchlight on the rear of the bodysuit |
| Topcoat | High quality domestic paint |
| color | The main color of the outer surface of the car body is RO3 fire red |
