| Brand Name : | Fushunt |

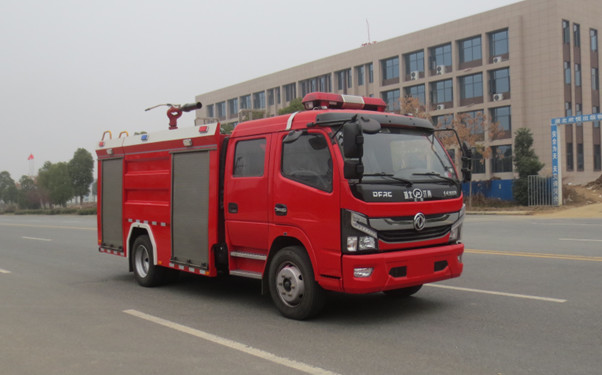

| Model Number : | Dongfeng 5000 liter water tank fire truck 5-seater diesel 4×2 manual transmission |
| Price : | $50,000-$60,000Dollar |
| Payment Terms : | T/T |
| Supply Ability : | 1000 vehicle |
| Delivery Time : | 5-8 work days |
Paragraph 1: Definition and Purpose
A water tank fire truck is a specialized vehicle designed for
firefighting operations. Its primary purpose is to transport and
supply a large volume of water to the fire scene for fire
suppression. Water tank fire trucks play a crucial role in
extinguishing fires in buildings, urban areas, and wildland
environments.
Paragraph 2: Vehicle Body and Structure
Water tank fire trucks feature a robust body and specialized
structural design. The body is constructed using durable materials
to withstand the rigors of firefighting operations. It is typically
mounted on a heavy-duty chassis to provide stability and support
for the water tank and firefighting equipment. The body may also
have compartments for storing additional firefighting tools and
equipment.
Paragraph 3: Water Tank and Pumping System
The water tank is a key component of a water tank fire truck. It is
designed to store a significant amount of water for fire
suppression purposes. The tank is often made of corrosion-resistant
materials to maintain water quality and prevent contamination.
Water tank fire trucks are equipped with powerful pumps and
spraying systems that can draw water from the tank and deliver it
to the fire scene at high pressure for effective firefighting.
Paragraph 4: Control and Operation Systems
Water tank fire trucks are equipped with control and operation
systems to facilitate firefighting operations. These systems
include control panels and levers in the driver's cabin, allowing
the operator to start, stop, and regulate the water pump and adjust
the water flow pressure. Some trucks may also have LCD displays and
controllers for monitoring the status of the water tank and pump,
providing operational guidance.
Paragraph 5: Safety and Convenience Features
Water tank fire trucks are equipped with various safety and
convenience features to ensure the safety of firefighters and
enhance operational efficiency. These features may include
emergency lighting, sirens, non-slip steps, and emergency escape
devices. Additionally, the driver's cabin is designed with
ergonomic considerations, providing comfortable seating and easy
access to controls. Some trucks may also have air conditioning
systems to maintain a comfortable working environment.
Summary: A water tank fire truck is a specialized vehicle designed for firefighting operations. It features a robust body and specialized structural design, along with a water tank and pumping system. The water tank stores a large volume of water, while the pumping system delivers the water to the fire scene at high pressure. Control and operation systems enable firefighters to operate the truck and regulate the water flow. Safety and convenience features ensure the safety of firefighters and enhance operational efficiency.
Main vehicle parameters:
| Outside dimensions | 6940×2195×3060mm |
| Maximum total mass | 11240kg |
| Liquid carrying capacity | Carrying 5000kg of water |
| maximum speed | 90km/h |
| Fire pump rated flow | 30L/s 1.0MPa |
| Rated flow rate of fire monitor | 30L/s 1.0MPa |
| fire cannon range | ≥55m |
| Specific power | 125/11.24=11.12 |
| Approach / departure angle | 21°/11° |
| Fuel type | diesel fuel |
| manufacturer | Dongfeng Motor Co., Ltd. |
| Engine rated power | 125kw |
| engine capacity | 3856ml |
| Engine emission standards | GB17691-2018 Country VI |
| Drive form | 4×2 |
| Wheelbase | 3800mm |
| Maximum allowed total weight | 11995kg |
| Minimum turning radius | ≤7m |
| gearbox | Manual |
| structure | Flat head, four doors, modified double row |
| Number of drivers and passengers | 3+3 people |
| driver position | left |
| equipment |
|
| General layout | 1. Alarm; |
| Process requirements | All carbon steel profiles and plates are treated with pickling and phosphating to prevent corrosion, and all parts and standard parts are treated with surface treatment processes such as electroplating and electrophoresis. All cutting parts are cut using laser cutting machines to ensure part accuracy. |
| structure | The main frame structure is welded with high-quality square tubes, and the exterior decorative panels are welded with carbon steel plates. The roof is anti-slip and can be walked on. (Aluminum alloy square tube can be welded according to user needs) |

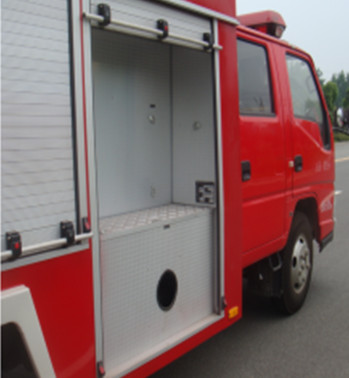

| Equipment box | The equipment box is located at the rear of the passenger compartment, with aluminum alloy rolling shutter doors on both sides and lights inside. Storage boxes are provided in the equipment box room according to needs. |
| pump room | The pump room is located at the rear of the vehicle. There are aluminum alloy rolling shutter doors on both sides and the back. There are lights inside. Some commonly used equipment can be placed on both sides of the pump room. |
| The rear ladder adopts an aluminum alloy two-section flip ladder. When in use, the height from the ground shall not exceed 450mm. The handle of the vehicle is made of a grooved anti-slip round steel pipe with surface spraying treatment. | |
| 5000kg (SG50) | |
| Ladder and car handles | High quality stainless steel, 3mm thickness |
| The built-in tank is equipped with vertical and horizontal wave-proof boards, with a manhole in the middle. The head, side plates, and partitions all have trapezoidal folding ribs to increase strength. The top plate is reinforced with angle iron. The water tank can withstand 0.1 MPa static water. Pressure, after 0.1 MPa hydrostatic strength test, there is no obvious residual deformation on both sides of the tank, and the overall anti-corrosion treatment |
|
|
